3306 JC3 NSK

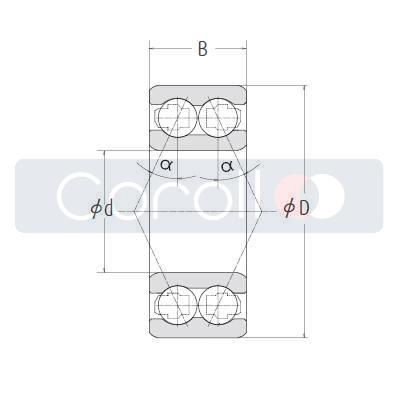

The picture is for illustration only
943 Kč
1.141 Kč s DPH
12 Pcs In stock
Product info
angular contact ball bearings
Brand: NSKInner diameter: 30.00
Outer diameter: 72.00
Total width: 30.20
Detailed product information
3306 JC3 NSK
| Inner diameter (d) [mm]: | 30 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 72 |
| Total bearing width [mm]: | 30,2 |
| Brand: | NSK |
| Material: | standard bearing steel |
| Cage: | pressed steel cage |
| Contact angle: | Contact angle 32° |
| Outer ring construction: | lubrication groove with lubrication holes in the outer ring |
| Inner ring construction: | lubrication groove with lubrication holes in the inner ring |
| Clearance - preload: | C3 - radial internal clearance larger than standard (slightly increased radial clearance) |
| Weight: | 0,5 |
| Rolling elements: | steel balls |
| Precision: | P0 /PN / ABEC1 - basic accuracy class |
| Seal: | without seal - open bearing |
| Category: | double-row angular contact ball bearing |
