3312 B-2ZRTNG NSK

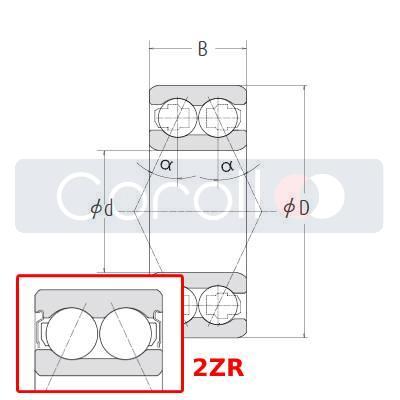

The picture is for illustration only

2.949 Kč

3.568 Kč s DPH

4 Pcs In stock

angular contact ball bearings

Brand: NSK

Inner diameter: 60.00

Outer diameter: 130.00

Total width: 54.00

Detailed product information

Inner diameter (d) [mm]:	60
Outer diameter, diameter of rod, shaft (D) [mm]:	130
Total bearing width [mm]:	54
Brand:	NSK
Material:	standard bearing steel
Cage:	polyamide cage
Contact angle:	Contact angle 25°
Outer ring construction:	standardní - bez příruby, bez drážky na vnějším průměru
Inner ring construction:	inner ring with cylindrical hole
Clearance - preload:	C0 / CN - standard / normal radial internal clearance (standard range)
Weight:	2,7
Rolling elements:	steel balls
Precision:	P0 /PN / ABEC1 - basic accuracy class
Seal:	steel sheets on both sides
Category:	double-row angular contact ball bearing
