7940 A5TRDULP3 NSK

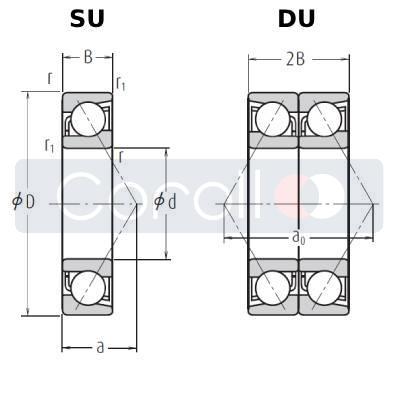

The picture is for illustration only
86.127 Kč
104.214 Kč s DPH
10 Pcs In stock
Product info
angular contact ball bearings
Brand: NSKInner diameter: 200.00
Outer diameter: 280.00
Total width: 76.00
Detailed product information
7940 A5TRDULP3 NSK
| Inner diameter (d) [mm]: | 200 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 280 |
| Total bearing width [mm]: | 76 |
| Brand: | NSK |
| Material: | standard bearing steel |
| Cage: | textite cage |
| Contact angle: | Contact angle 25° |
| Outer ring construction: | standardní - bez příruby, bez drážky na vnějším průměru |
| Inner ring construction: | inner ring with cylindrical hole |
| Arrangement: | DU |
| Clearance - preload: | L - slight preload |
| Weight: | 11,9 |
| Rolling elements: | steel balls |
| Precision: | P3 - dimensional accuracy P4/ABEC7, running accuracy P2/ABEC9 |
| Seal: | without seal - open bearing |
| Category: | Single-row angular contact ball bearing |
