3203 B-2ZRTNGC3 NSK

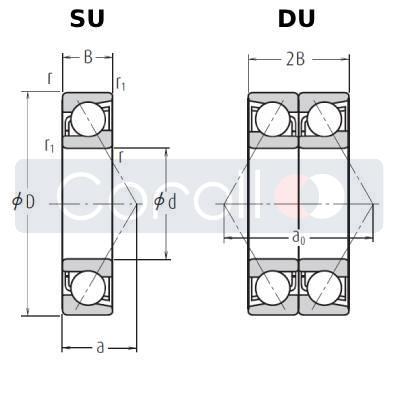

The picture is for illustration only
443 Kč
536 Kč s DPH
6 Pcs In stock
Product info
angular contact ball bearings
Brand: NSKInner diameter: 17.00
Outer diameter: 40.00
Total width: 17.50
Detailed product information
3203 B-2ZRTNGC3 NSK
| Inner diameter (d) [mm]: | 17 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 40 |
| Total bearing width [mm]: | 17,5 |
| Brand: | NSK |
| Material: | standard bearing steel |
| Cage: | polyamide cage |
| Contact angle: | Contact angle 25° |
| Outer ring construction: | standard - without flange, without groove |
| Inner ring construction: | inner ring with cylindrical hole |
| Clearance - preload: | C3 - radial internal clearance larger than standard (slightly increased radial clearance) |
| Weight: | 0,09 |
| Rolling elements: | steel balls |
| Precision: | P0 /PN / ABEC1 - basic accuracy class |
| Seal: | steel sheets on both sides |
| Category: | double-row angular contact ball bearing |
