90 BNR10HTV1VSUELP3 NSK

18.371 Kč
22.229 Kč s DPH
4 Pcs In stock

Product info

angular contact ball bearings

Brand: NSK
Inner diameter: 90.00
Outer diameter: 140.00
Total width: 24.00

Detailed product information

90 BNR10HTV1VSUELP3 NSK
Inner diameter (d) [mm]: 90
Outer diameter, diameter of rod, shaft (D) [mm]: 140
Total bearing width [mm]: 24
Brand: NSK
Material: standard bearing steel
Cage: textite cage
Contact angle: Contact angle 19°
Outer ring construction: standard - without flange, without groove
Inner ring construction: inner ring with 1:30 taper hole

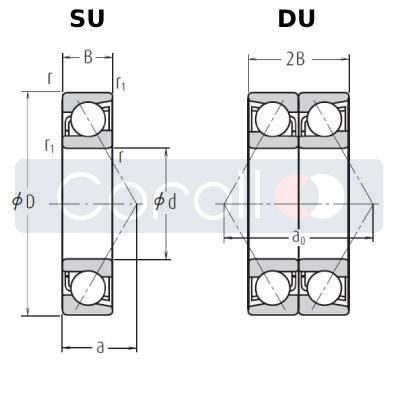

Arrangement: SU
Clearance - preload: EL - extra light preload
Weight: 1,16
Rolling elements: ceramic balls
Precision: P3 - dimensional accuracy P4/ABEC7, running accuracy P2/ABEC9
Seal: non-contact NBR on both sides
Category: spindle ball bearing
