80 BNR19STXV1VSU-01/ELP3 NSK
The picture is for illustration only
6.672 Kč
8.073 Kč s DPH
4 Pcs In stock
Product info
angular contact ball bearings
Brand: NSKInner diameter: 80.00
Outer diameter: 110.00
Total width: 16.00
Detailed product information
80 BNR19STXV1VSU-01/ELP3 NSK
| Inner diameter (d) [mm]: | 80 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 110 |
| Total bearing width [mm]: | 16 |
| Brand: | NSK |
| Material: | standard bearing steel |
| Cage: | textite cage |
| Contact angle: | Contact angle 19° |
| Outer ring construction: | standard - without flange, without groove |
| Inner ring construction: | inner ring with 1:30 taper hole |

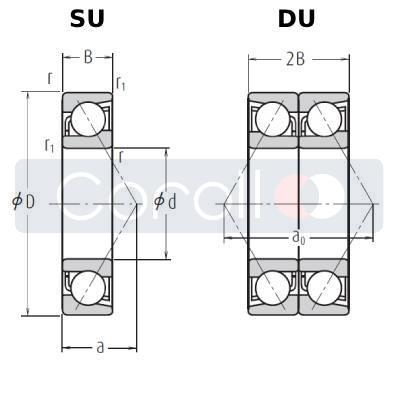

| Arrangement: | SU |
| Clearance - preload: | EL - extra light preload |
| Weight: | 0,37 |
| Rolling elements: | steel balls |
| Precision: | P3 - dimensional accuracy P4/ABEC7, running accuracy P2/ABEC9 |
| Seal: | non-contact NBR on both sides |
| Category: | spindle ball bearing |
