7915 CTRV1VSULP3 NSK

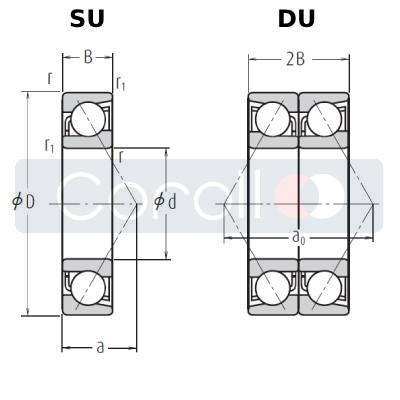

The picture is for illustration only

5.172 Kč

6.258 Kč s DPH

4 Pcs In stock

angular contact ball bearings

Brand: NSK

Inner diameter: 75.00

Outer diameter: 105.00

Total width: 16.00

Detailed product information

Inner diameter (d) [mm]:	75
Outer diameter, diameter of rod, shaft (D) [mm]:	105
Total bearing width [mm]:	16
Brand:	NSK
Material:	standard bearing steel
Cage:	textite cage
Contact angle:	Contact angle 15°
Outer ring construction:	standardní - bez příruby, bez drážky na vnějším průměru
Inner ring construction:	inner ring with cylindrical hole
Arrangement:	SU
Clearance - preload:	L - slight preload
Weight:	0,35
Rolling elements:	steel balls
Precision:	P3 - dimensional accuracy P4/ABEC7, running accuracy P2/ABEC9
Seal:	non-contact NBR on both sides
Category:	Single-row angular contact ball bearing
