609 T1XZZ1MC5E NS7 L NSK

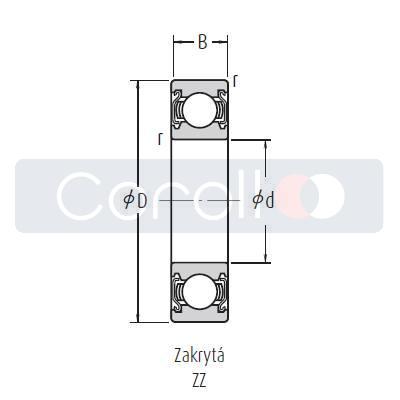

The picture is for illustration only
0 Kč
0 Kč s DPH
7 Pcs In stock
Product info
Single row ball bearings
Brand: NSKInner diameter: 9.00
Outer diameter: 24.00
Total width: 7.00
Detailed product information
609 T1XZZ1MC5E NS7 L NSK
| Inner diameter (d) [mm]: | 9 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 24 |
| Total bearing width [mm]: | 7 |
| Brand: | NSK |
| Seal: | steel sheets on both sides |
| Category: | Single-row deep groove ball bearing |
| Material: | standard bearing steel |
| Cage: | phenolic resin cage |
| Outer ring construction: | standard - without flange, without groove |
| Inner ring construction: | inner ring with cylindrical hole |
| Clearance - preload: | C0 / CN - standard / normal radial internal clearance (standard range) |
| Grease: | Kyodo Yushi Multemp SRL |
| Rolling elements: | steel balls |
| Weight: | 0,015 |
| Grease filling: | 20-30% free space in the bearing |
| Precision: | P0 /PN / ABEC1 - basic accuracy class |
