7212 A5TRDULP3 NSK

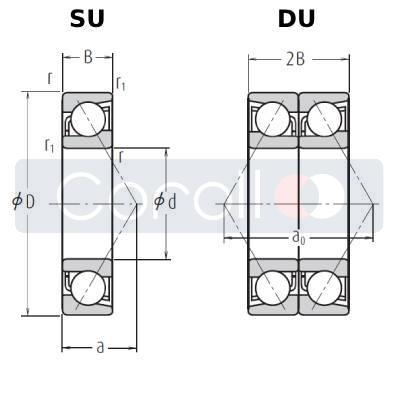

The picture is for illustration only
8.147 Kč
9.858 Kč s DPH
30 Pcs In stock
Product info
angular contact ball bearings
Brand: NSKInner diameter: 60.00
Outer diameter: 110.00
Total width: 44.00
Detailed product information
7212 A5TRDULP3 NSK
| Inner diameter (d) [mm]: | 60 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 110 |
| Total bearing width [mm]: | 44 |
| Brand: | NSK |
| Material: | standard bearing steel |
| Cage: | phenolic resin cage |
| Contact angle: | Contact angle 25° |
| Outer ring construction: | standard - without flange, without groove |
| Inner ring construction: | inner ring with cylindrical hole |
| Arrangement: | DU |
| Clearance - preload: | L - slight preload |
| Weight: | 1,56 |
| Rolling elements: | steel balls |
| Precision: | P3 - dimensional accuracy P4/ABEC7, running accuracy P2/ABEC9 |
| Seal: | without seal - open bearing |
| Category: | Single-row angular contact ball bearing |
