62303500 MADLER svěrný kroužek
The picture is for illustration only
0 Kč
0 Kč s DPH
24 Pcs In stock
Product info
Single row ball bearings
Inner diameter: 22.20
Outer diameter: 56.00
Total width: 21.00
Detailed product information
62303500 MADLER svěrný kroužek

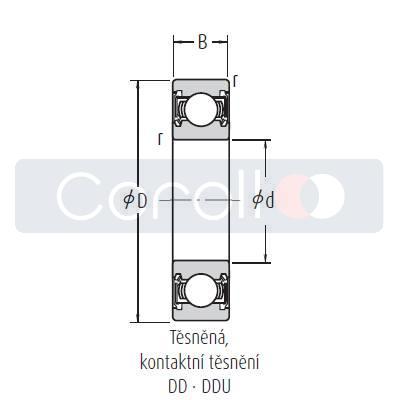

| Inner diameter (d) [mm]: | 22,2 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 56 |
| Total bearing width [mm]: | 21 |
| Category: | Single-row deep groove ball bearing |
| Material: | standard bearing steel |
| Cage: | pressed steel cage |
| Outer ring construction: | standard - without flange, without groove |
| Inner ring construction: | inner ring with cylindrical hole |
| Clearance - preload: | MC3 - standard radial clearance of NSK miniature bearings (narrowed range 5-10 µm) |
| Weight: | 0,2 |
| Rolling elements: | steel balls |
| Precision: | P0 /PN / ABEC1 - basic accuracy class |
| Seal: | contact NBR seal on both sides |
