7202 ATBP4T ZKL

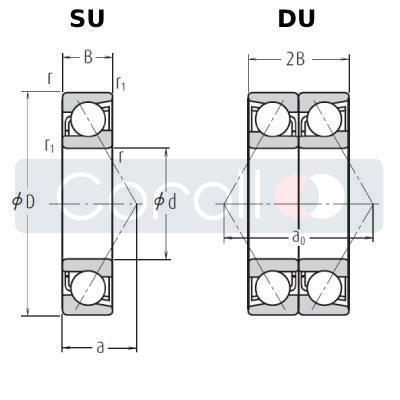

The picture is for illustration only
0 Kč
0 Kč s DPH
2 Pcs In stock
Product info
angular contact ball bearings
Brand: ZKLInner diameter: 15.00
Outer diameter: 35.00
Total width: 22.00
Detailed product information
7202 ATBP4T ZKL
| Inner diameter (d) [mm]: | 15 |
|---|---|
| Outer diameter, diameter of rod, shaft (D) [mm]: | 35 |
| Total bearing width [mm]: | 22 |
| Brand: | ZKL |
| Material: | standard bearing steel |
| Cage: | phenolic resin cage |
| Contact angle: | Contact angle 25° |
| Outer ring construction: | standard - without flange, without groove |
| Inner ring construction: | inner ring with cylindrical hole |
| Clearance - preload: | C0 / CN - standard / normal radial internal clearance (standard range) |
| Weight: | 0,1 |
| Rolling elements: | steel balls |
| Precision: | P4 / ABEC7 |
| Seal: | without seal - open bearing |
| Category: | Single-row angular contact ball bearing |
